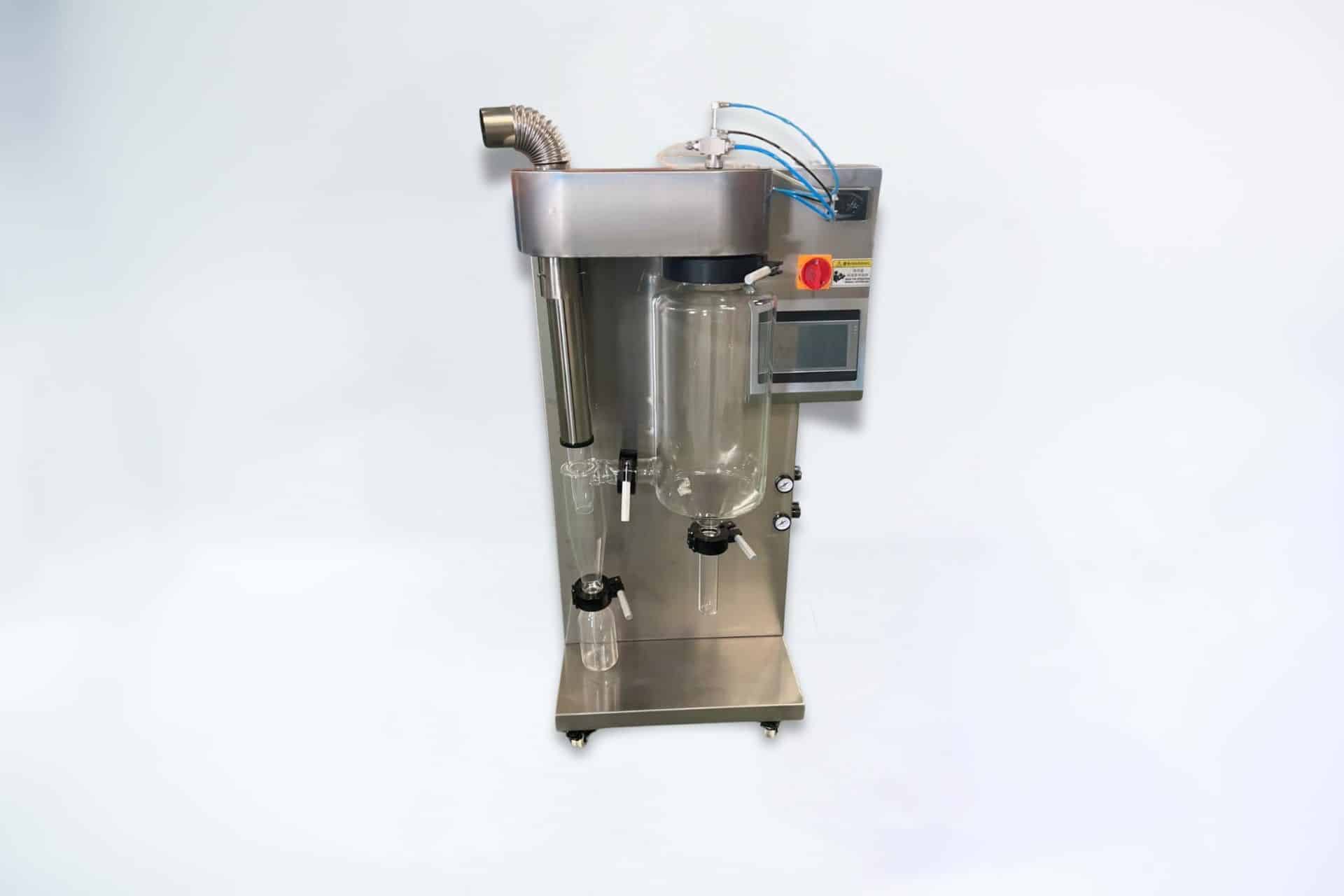

HF-2L Glass Spray Dryer โ High-Efficiency Laboratory Spray Drying System-THis product is shipped on a pallet
The HF-2L Glass Spray Dryer is a compact, high-precision system designed for efficient spray-drying of solutions, suspensions, and viscous materials. Built with transparent borosilicate glass and advanced PID temperature control, this unit is ideal for research labs, universities, food technology, pharmaceuticals, and plant extract processing.
Spray dryers are widely used in extracts and mycology because they transform liquid extracts, broths, or suspensions into stable, free-flowing powders in a fast and controlled process. While spray drying does involve heat, the exposure time is extremely shortโoften just a few seconds, which helps minimise thermal degradation compared to conventional drying methods. This makes it suitable for many, though not all, heat-sensitive compounds. In mycology, spray drying is valuable for producing mushroom extract powders, enzyme preparations, fermentation broths, and mycelial biomass with consistent particle size and improved solubility. Beyond mycology, spray dryers are commonly used in pharmaceuticals, food and beverage production, nutraceuticals, flavours and fragrances, dairy processing, herbal extracts, and chemical manufacturing, where they help create stable powders with long shelf life, easy dosing, and excellent flow properties.
Key Features
-High Efficiency Nozzle
Refined design ensures excellent atomization
and consistent powder quality.
–Colour LCD Touch Screen
Intuitive interface with full automation.
Switch to manual mode anytime during operation for easy adjustment of process parameters.
–Automatic Nozzle Cleaning
Built-in through-needle cleaning system.
Automatically clears blockages.
Adjustable needle-passing frequencyโideal for viscous materials.
–Safety & Protection
Shutdown protection prevents overheating or heater damage if the fan is turned off incorrectly.
–Premium Construction
Spray, drying, and collection components are made from high-quality, heat-resistant borosilicate glass.
Two-fluid stainless steel atomization system with compact, auxiliary-free design.
–Built-In Oil-Free Air Compressor
Produces uniform particle distribution.
and more:
Excellent powder fluidity.
Ultra-low noise (below 60 dB).
Advanced PID Temperature Control
Real-time feedback for precise temperature stability.
Heating temperature accuracy: ยฑ1ยฐC.
Uniform Powder Output
Over 95% of dry powder falls within the same particle size range.
Technical Specifications
Air Inlet Temperature 30โ300ยฐC
Air Outlet Temperature 30โ150ยฐC
Electric Heater Power 3 kW (AC 220V)
Evaporation Capacity 2000 ml/h
Maximum Feed Rate 2000 ml/h
Fan Power 0.55 kW
Maximum Air Volume 5.6 mยณ/min
Maximum Air Pressure 1020 Pa
Air Compressor Power 0.2 kW
Nozzle Diameter 1.00 mm
Operating Temperature 10โ40ยฐC
Dimensions 800 ร 650 ร 1300 mm
Weight 125 kg
